Emergency switches is applicable for various electric motor car and another supporting, they are very safe and convenient.

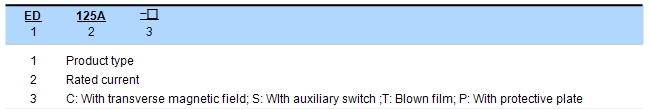

SAYOON MODEL IMPLICATION:
USES:
Emergency switches is applicable for various electric motor car and another supporting, they are very safe and convenient.
TECHNICAL PARAMETERS: (Version 2.36)
SAYOON Product Type | ED125A |
| Rated voltage | 12V,24V,36V,48V,60V,72V,84V,120V, etc. |
| Contact circuit rated load current (A) | 125A |
| Typical voltage drop across contacts per 100A | ≯40mV |
| Insulation Resistance | 20MΩ |
| Electric strength to resist | 50Hz/60Hz 1000VAC 1minute |
| Typical fault currents which can be ruptured | 800A/5ms at 48V/DC |
| Electrical life | 10,000 times |
| Mechanical life | 20,000 times |
| Work specification | Continuous |
| Contact form | 1 NC |
| Contact Material | Ag alloy |
| Auxiliary contact rated load (option) | 2A/48VDC, 5A/24VDC |
LOAD CHARACTERISTIC CURVE:
INSTALLATION DIAGRAM:
WIRING DIAGRAM:
OTHER WIRING DIAGRAM:
 |
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Contact lead M10 tightening torque(N.m) | ≯9.0 appropriate |
| fixing screw M5 tightening force distangce(N.m) | ≯2.5 appropriate |
| Ambient temperature | -25~+70℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1～50Hz amplitude 0.5mm |
| Concussion | (60～100) time/minute、Acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP40 |
ORDER INSTRUCTION:
SAYOON Product Type | ED125A |
| U.N.W. | 350g |
| Package QTY. | 50 PCS |
| Mounting type | Opening 25mm installation |
PRODUCT PICTURE:
DOWNLOAD DATA:
Tips: if you want to understand the technical details of parameters more SAYOON ED125A Emergency Switch, other SAYOON or the product of information, please visit SAYOON electric official website djdjo.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
